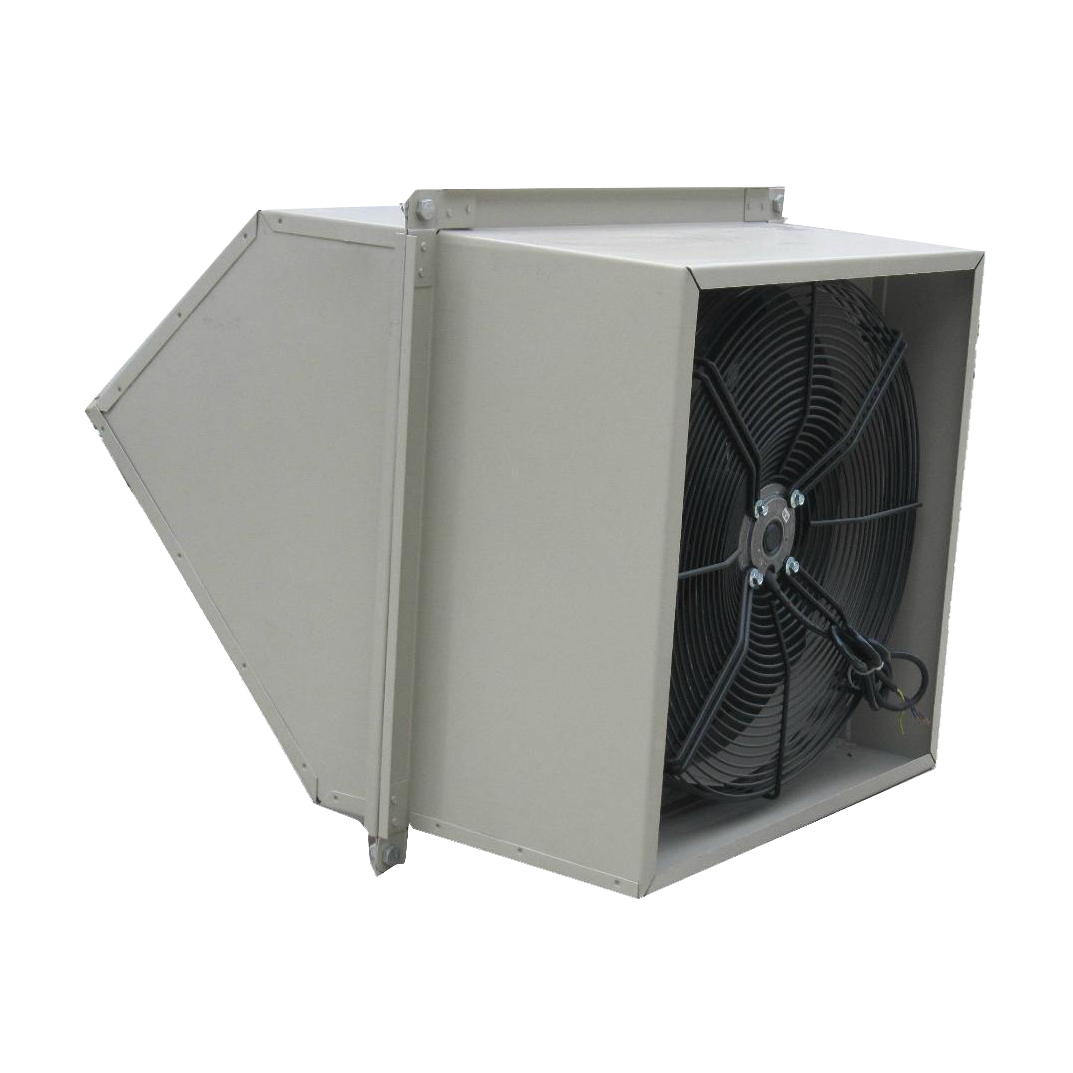

FP邊墻軸流風機
產品分類：軸流風機
點擊次數：902 次
上架時間：2021-12-15 17:57
全國服務熱線：020-84913508 / 020-84918260
我要詢價詳細介紹
產品概述 Product description
特性及應用Characteristics and Application
FP系列風機采用先進的前掠型葉片、低噪音的外轉子或內轉子風機專用電機直聯傳動，方形外殼設計可以方便地安裝在混凝土墻、磚墻及輕鋼壓型墻板上，方形防雨罩結構牢固，外形美觀。具有噪聲低、風量大、運行可靠、性能參數范圍廣、安裝簡便等特點，廣泛應用于廠礦企業車間和民用、商用建筑工程的邊墻壁式通風換氣。根據輸送介質的要求，可制成防腐、防爆型。
FP系列風機一般用于邊墻壁式排風，配設45°防雨罩(或特殊制造成60°)和防蟲網(夜間可防止昆蟲循燈光飛入車間)?？砂葱枰瞥蛇厜λ惋L機(在FP前面加S為邊墻送風機)，配設90°防雨罩(防風、雨、塵)和防蟲網(夜間可防止昆蟲循燈光飛入車間)。
注:當配帶重力式止回閥時，墻壁式排風機則不帶防蟲網。
FP series fan is adopted with advanced forward-swept blades. low noise outer rotor or the inner rotor fan motor direct drive.lts square shell design make it be easily installed on concrete wall, brick wall and light steel profiled wallboard.The square rainproof cover has firm structure and beautliful appearance.with low noise, large air flow, reliable operation,convenient installation and a large scale of performance parameters，the fan is widely used in the ventilation system in factories,mines, enterprises, workshops and civil or commercial construction projects.According to the requirements of conveying medium, it can be made into anti-corrosive and explosion-prooflype.
FPseries fans are generally used for side wall air exhaust, equipped with 45 degree rainproof cover (or specially made into 60 degrees) .And it's also equipped with insect proof nets (to prevent insects from flying into workshops at night).According to tne requirement,it can be made to be a side wall blower(adding S at front of FP is side wall blower.),equipped with 90 degrees rainproof cover (windproof，rainproof dustproof ）and insect proof net (to prevent insects from flying into workshops at night). Note: when equipped with gravity check valve,the wall type exhaust fan does not contain insect proof net.
